Heavy duty transportation electric flatbed transfer cart

  • Payload : 50 ton
  • Table Size : 4500*2000mm
  • Application : Heavy duty machine, die, metal products transport, steel products
  • Power : Battery Power
  • Use Sites : Factory, Workshop, Assembly Line, Warehouse
  • Material : Steel

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • battery-operated-transfer-platform-trolley
  • electric-flatbed-transfer-trolley-cart
  • battery-operated-transport-handling-trolley
  • Transfer-trolley-on-wheels
Main Products
On-rail Transfer trolleys
Custom Transfer trolleys
Trackless Transfer trolleys
Industrial Trailers
Rail Flaw Detection Vehicle

Need Help?

or Email us:

sale@perfte.com

Follow Us

Facebook Linkedin
■ Overview

Heavy duty transportation use electric flatbed transfer trolley vehicle

PERFECT Company designs and manufactures a wide range of battery motorized trolleys, intelligent self-propelled trailers, transfer carts, die carts, industrial trailers, tilters, upenders and lifting platforms that operate in several industrial sectors: metallurgy, oil & gas, shipyards, automotive, aerospace, power generation, paper mills, metal working and many others!
These battery powered trolleys have been conceived and built for their utmost working flexibility. Since they have no predefined path and can steer in any direction and move on any kind of floor these motorized trolleys are very useful to bring the heavy loads where overhead cranes cannot arrive.
This kind of battery steerable transfer carts represent the best solution for all those appliances with delicate handling problems in limited places.


■ Technical Data


Model

BXC-2t

BXC-20t

BXC-50t

BXC-100t

BXC-150t

Rated Load(t)

2

20

50

100

150

Table Size (mm)

Length(L)

2000

4000

5500

6500

10000





Width(W)

1500

2200

2500

2800

3000





Height(H)

450

550

650

900

1200

Wheel Base(mm)

1200

2800

4200

4900

7000

Rail Inner Gauge(mm)

1200

1435

1435

200

2000

Wheel Diameter (mm)

270

350

500

600

600

Running Speed (m/min)

0-25

0-20

0-20

0-20

0-18

Motor Power(kw)

1

2.2

5

10

15

Battery Capacity

180

180

330

440

600

Battery Voltage

24

48

48

72

72

Running Time When Full Load

4.32

4

3.3

3.2

2.9

Running Distance for One Charge(km)

6.5

4.8

4

3.8

3.2

Recommended Rail Model

P15

P24

P43

QU100

QU100

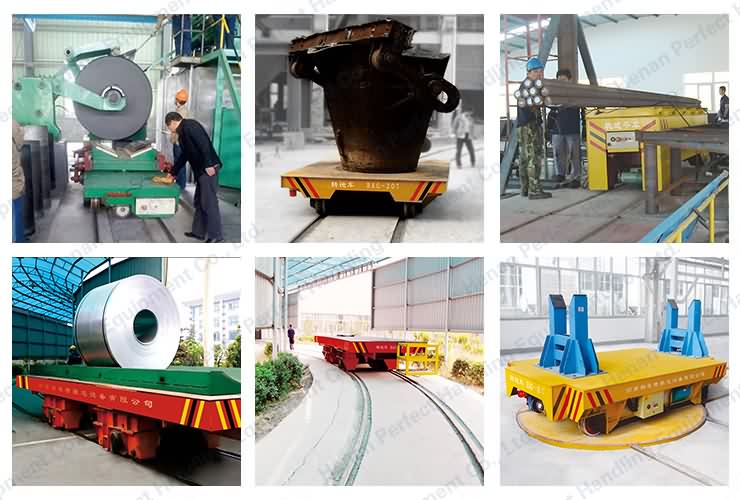

■ Application
Since 2003, Henan Perfect Handling Equipment co., Ltd. has been involved to solve problems related to the transportation and handling of materials inside any type of industry.We design and manufacture transfer trolleys, industrial trailers, rail transport vehicle, coil and ladle transfer carts, electric flatbed carriage and other handling equipment. Giving innovative solutions to our customers.
