■ Overview

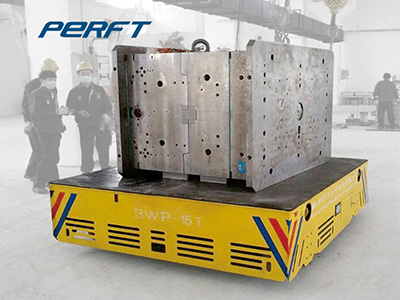

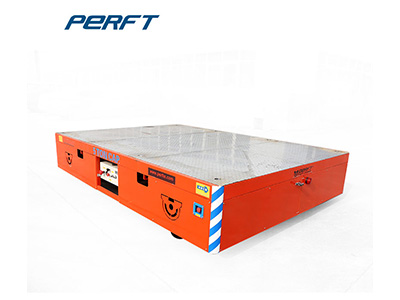

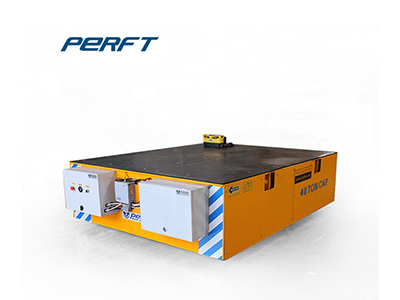

Motorized Electric Injection Mould Trackless Transfer Cart
Motorized Electric Injection Mould Trackless Transfer Cart is a kind of trackless material handling trolley, which means it can run on cement floor and no need to install rails.It is powered by storage battery, so it can turn freely without any cable strings.
The Motorized Electric Injection Mould Trackless Transfer Cart have at lest two casters, which could realize 360 degree motorized rotation without causing any damage to the floor.

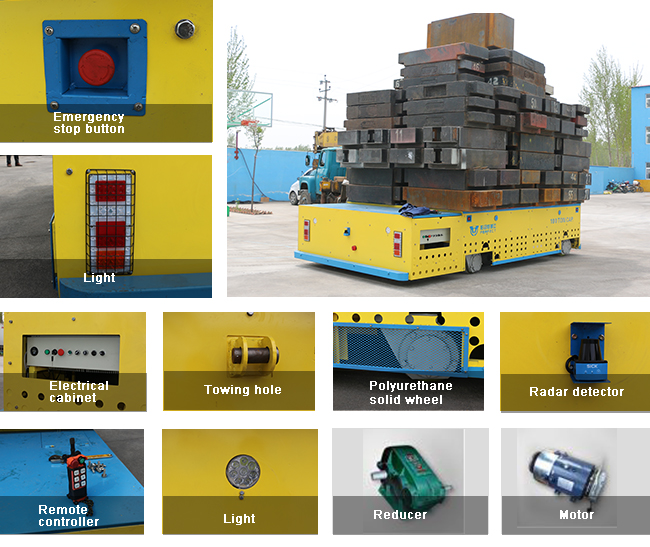

Every car will have an audible and visual alarm device, or it can be equipped with infrared stop, limit damping and other equipment to provide maximum safety for operators and materials.
This Motorized Electric Injection Mould Trackless Transfer Cart is controlled to go forward and backward, turn left and right by pressing the buttons and speed controller.
It also can be added with PLC control system for full automation.
■ Technical Data
|
Model |
BWP-2T |
BWP-10T |
BWP-20T |
BWP-30T |
BWP-50T |
BWP-63T |
BWP-150T |
|
|
Rated load (T) |
2 |
10 |
20 |
30 |
50 |
63 |
150 |
|
|
Table size |
length(L) |
2000 |
3600 |
4000 |
4500 |
5500 |
5600 |
10000 |
|
Width(W) |
1500 |
2000 |
2200 |
2200 |
2500 |
2500 |
3000 |
|
|
Height(H) |
450 |
500 |
550 |
600 |
650 |
700 |
1200 |
|
|
Wheel Base (mm) |
1200 |
2600 |
2800 |
3200 |
4200 |
4300 |
7000 |
|
|
Wheel Diameter(mm) |
Φ270 |
Φ300 |
Φ350 |
Φ400 |
Φ500 |
Φ600 |
Φ600 |
|
|
Ground Clearance (mm) |
50 |
50 |
50 |
50 |
50 |
75 |
75 |
|
|
Motor Power (Kw) |
1 |
1.6 |
2.2 |
3.5 |
5 |
6.3 |
15 |
|
|
Battery Capacity(Ah) |
180 |
160 |
180 |
250 |
330 |
400 |
600 |
|
|
Battery Voltage(V) |
24 |
48 |
48 |
48 |
48 |
48 |
72 |
|
|
Running Time When Full Load |
4.32 |
4.8 |
4 |
3.5 |
3.3 |
3 |
2.9 |
|
|
Running Distance for one Charge(Km) |
6.5 |
7.2 |
4.8 |
4.2 |
4 |
3.6 |
3.2 |
|
|
Max Wheel Load (KN) |
14.4 |
42.6 |
77.7 |
110.4 |
174 |
221.4 |
265.2 |
|
■ Application

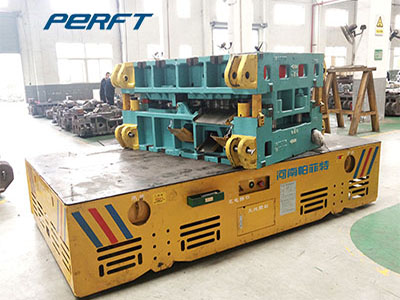

This Motorized Electric Injection Mould Trackless Transfer Cart not only can transport all kinds of die, it is also can be widely applied in Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mold Maker, Construction Machinery maker, Shipyard, Port Cargo Yard Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on.
