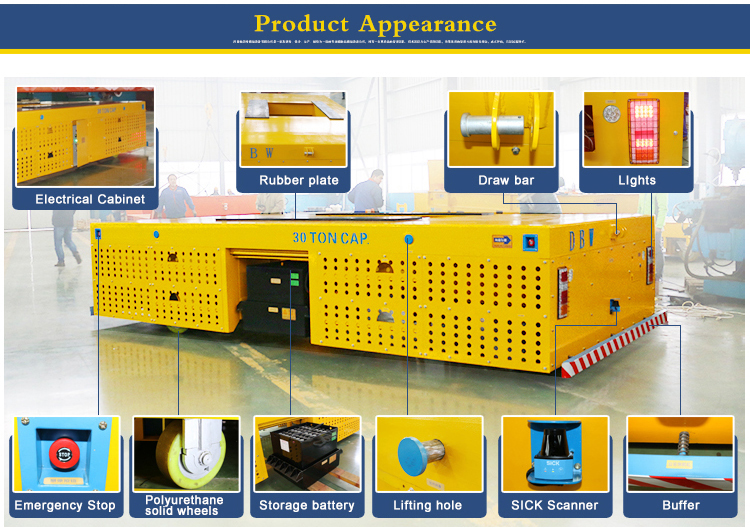

■ Overview
The Battery Operated Automatic Trackless Transfer Trolleys is our most popular trolley.
Battery Operated Automatic Trackless Transfer Trolleys can be used on cement.Battery Operated Automatic Trackless Transfer Trolleys is more safe and flexible.
It has no strict requirement for the construction of the railway, No limit of running distance.
Safe and convenient operation for there is no wire outside the car Adjustable speed.
Motor and gear reducer are controlled by control system to drive wheels and make the cart start, stop, go forward and backward, turn left, right, around in 360°and so on.
Battery is easy to replace within 5min , full load continuous running 6 hours , the Intelligent charging device can charge the battery full within 8 hours.
So is suitable for various industries, steel mill, steel structure, steel pipe, steel billets, steel ladle and coil, etc, transfer steel produce from one location to another.
■ Technical Data
Some Specifications ——provide customized services
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Operation Method | Raido Remote Control | ||||
| Battery Maintainance | Free of maintainance | ||||
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Customized | ||||
| Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning Equipment | Horn and Flash Light | ||||
| Other Functions | Turning light, night light and power display | ||||
■ Application

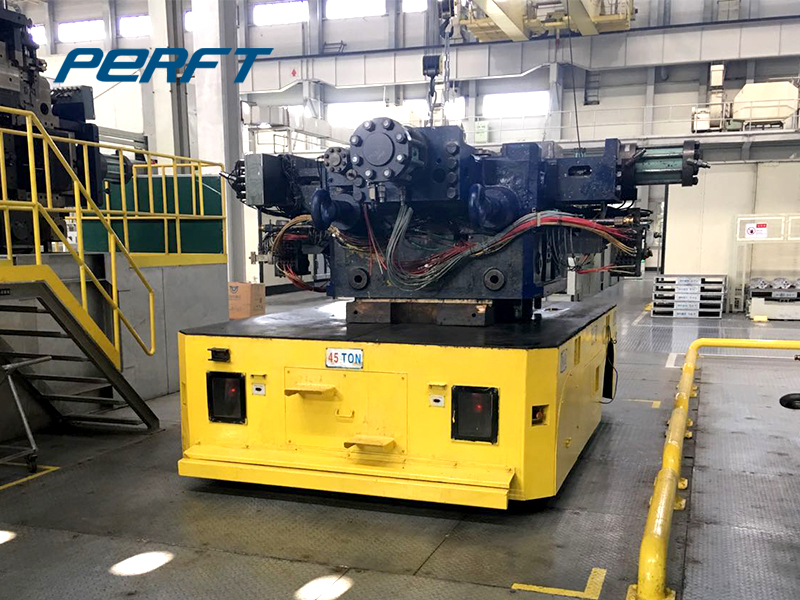

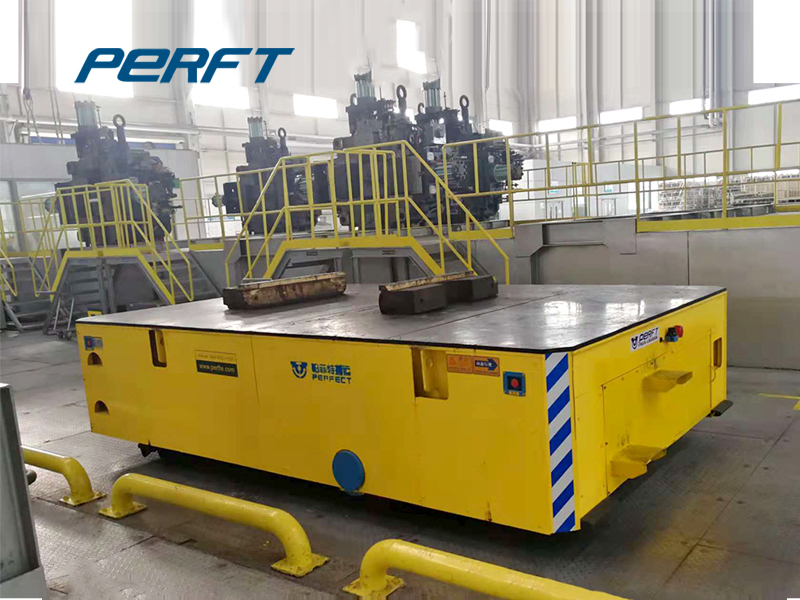

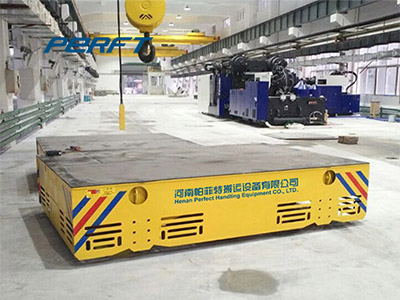

This Battery Operated Automatic Trackless Transfer Trolleys can be widely applied in Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mould Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse.
