Rail Bound Cart Portable Railway System Detection Vehicle

  • Model : Motor Rail Vehicle
  • Rated Load(Kg) : 500
  • Table Size(mm) : 1600×1000 / As Customer's Need
  • Rail Inner Gauge(mm) : 1435
  • Running Speed (Km/h) : 0-30
  • Lithium Battery : 2000mAH

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • railway-system-detection-vehicle
  • rail cart
  • rail detection vehicle
  • rail flaw detection vehicle
Main Products
On-rail Transfer trolleys
Custom Transfer trolleys
Trackless Transfer trolleys
Industrial Trailers
Rail Flaw Detection Vehicle

Need Help?

or Email us:

sale@perfte.com

Follow Us

Facebook Linkedin
■ Overview

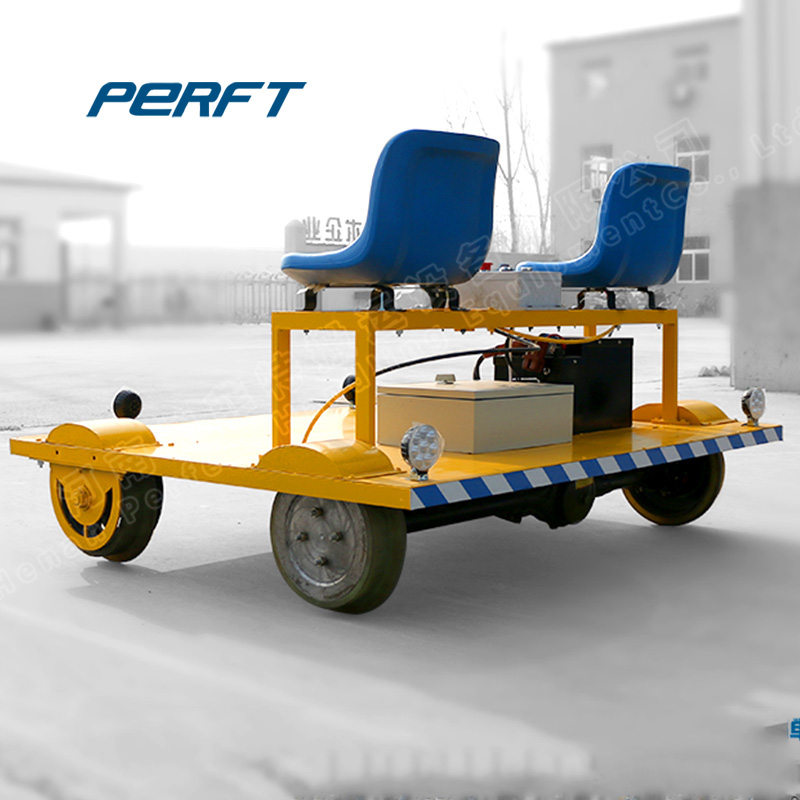

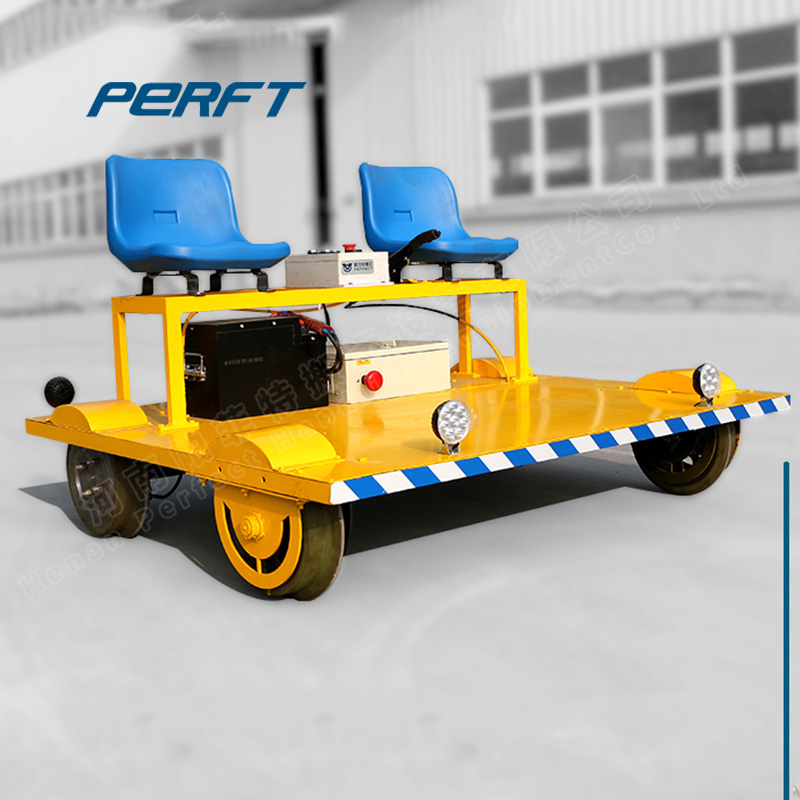

Rail Bound Cart Portable Railway System Detection Vehicle






Brief introduction

The rail bound cart portable railway system detection vehicle is designed to cater for the rapid development of rail transport system. It is typically used for rail system maintenace and rail flaw detection.
PERFECT railway system detection vehicle adopt light-weight design and can be lifted easily by two people. For this reason, the rail vehicle is very convenient and flexiable in use.
Usually, it is composed of safety seats, transmission system, control cabinet, lithium-ion battery set and intelligent charger with USB socket.

Advantages
• Compact, light weight, safe and reliable.
• Components and parts apply used universally,strong compatibility.
• High service behavior, easy maintenance.
• Easy operation, accurate fault diagnosis model.


rail flaw detection vehiclerail detection cart


■ Technical Data


Parameters of Railway System Detection Vehicle

NO.

Item

Value

1

Model

Motor Rail Trolley

2

Rated Load(Kg)

500

3

Table Size(mm)

1600×1000

4

Rail Inner Gauge(mm)

1435

5

Light

Customized

6

Power

Lithium Battery

7

Control

Button Control

8

Running Speed(Km/h)

0-30

9

Diameter(mm)

Φ200

10

Lithium Battery

2000mAH

11

Charge Voltage

AC220V, 50HZ

12

Charge Time

8h

13

Working Time

4-5h

14

Application

High Speed rail way, rail way, subway

15

Wheel

4



Notice
♦ Light weight design: aluminium alloy with light weight, can be lifted easily by two people;
♦ Safety seats: the safety seats can designed as your requirement;
♦Optional propulsion mode: this railway system detection vehicle could be driven by battery, gasoline engine or diesel engine;
■ Application

Application

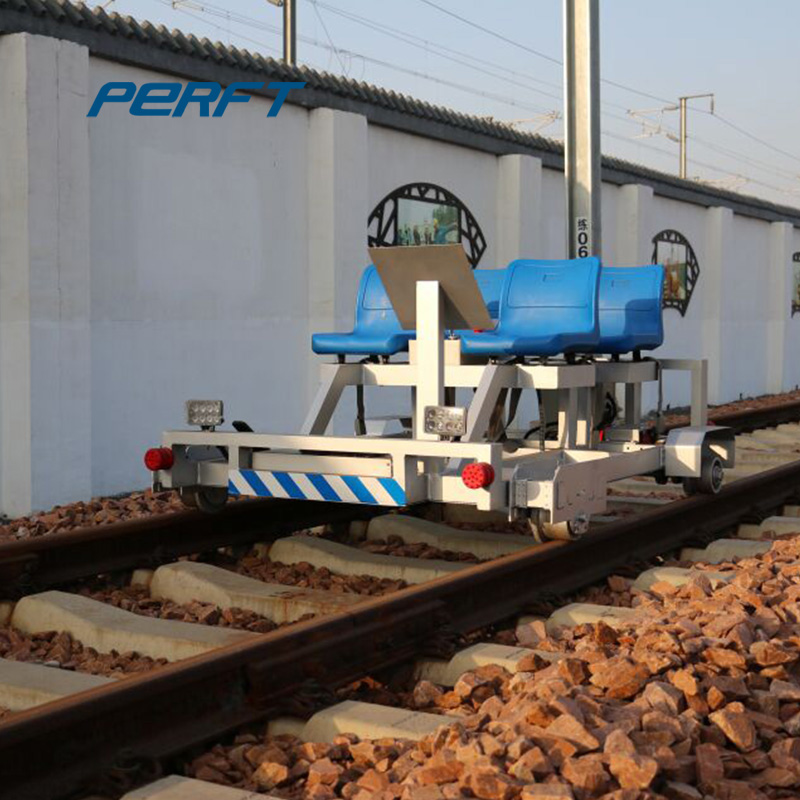

The rail bound cart portable railway system detection vehicle mainly applied to check out the damage of the rail occurred in the process of the railway vehicles operation. For fear of tragic accidents due to the steel rails breaking, our company had started to study the double tracks running rail detection trolley for scanning steel rails since 2015. Compared with traditional hand-push type steel detection mode and large-scale high speed detection vehicle with portable detector and fixed-point review model, the detecting efficiency of this kind railway system detection vehicle has been increased by 6 times.
