■ Overview

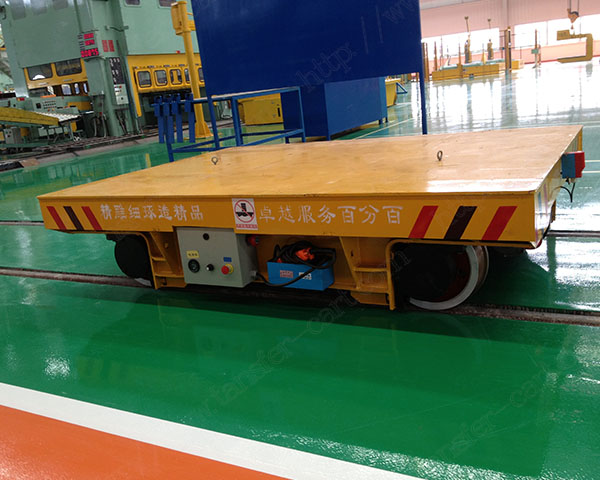

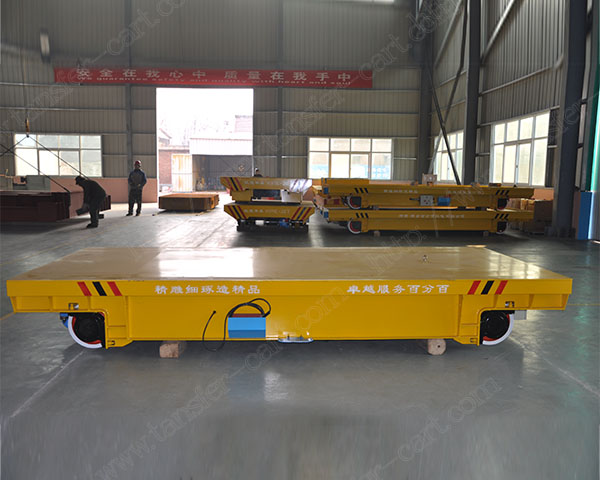

Battery Powered Steel pipe transfer trolley on rail tracks
2. It is powered by storage battery, which is underneath the cart. And the battery supplies DC 24V/36V/48V to the electrical control system and operate the cart.
3. Suitable for transferring steel coil, ladles, billets, fabricated structures etc.
4. Also can be applied to shipyard, blast and painting booth, etc.
2.The structure is box beam structure, prevent the deformation from concentrate loading.
3. Safety equipment: E-stop button, warning light, limit switch, dead man control, bumper, etc.
4. Rail guided; we can also design the cart running on cement floor without rail.
5. The flat surface is flat decking, coil holder can be installed for your special use.
6. Unlimited travelling distance.
Note: For any other special needs, we can design the transfer trolley for you.
Product Brief
1.The battery powered transfer trolley is mainly used in steel plant, steel mill for transferring steel products from one bay to another. The load capacity is ranging from 1 ton to 300 tons.2. It is powered by storage battery, which is underneath the cart. And the battery supplies DC 24V/36V/48V to the electrical control system and operate the cart.
3. Suitable for transferring steel coil, ladles, billets, fabricated structures etc.
4. Also can be applied to shipyard, blast and painting booth, etc.
Features of battery powered trandfer trolley
1.Battery powered, it can be used when there is no power source.2.The structure is box beam structure, prevent the deformation from concentrate loading.
3. Safety equipment: E-stop button, warning light, limit switch, dead man control, bumper, etc.
4. Rail guided; we can also design the cart running on cement floor without rail.
5. The flat surface is flat decking, coil holder can be installed for your special use.
6. Unlimited travelling distance.
Note: For any other special needs, we can design the transfer trolley for you.
■ Technical Data
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-63t | KPX-100t | KPX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 63 | 100 | 150 | |
| Table Size(mm） | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5600 | 6500 | 10000 |
| Width( W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 700 | 900 | 1200 | |
| Wheel Diameter(mm） | Ф270 | Ф300 | Ф300 | Ф350 | Ф350 | Ф400 | Ф400 | Ф500 | Ф600 | Ф600 | Ф600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Running Seed(m/min） | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(Kw） | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 6.3 | 10 | 15 | |
| Battery Voltage(V） | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3 | 3.2 | 2.9 | |
| Reference Weight(t） | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 10.8 | 14.6 | 26.8 | |
■ Application
Application of the battery powered transfer trolley

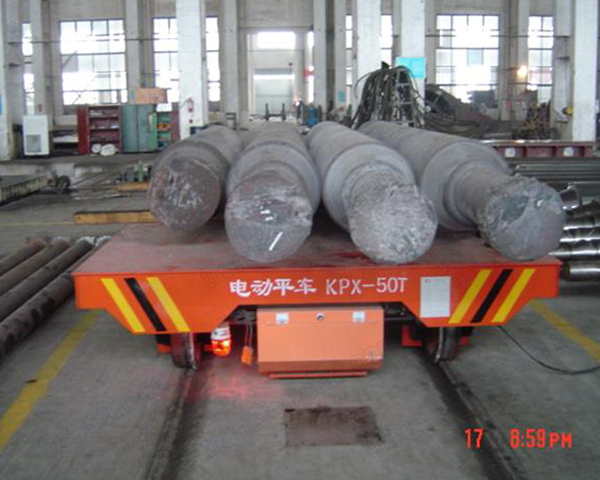

• The battery powered transfer car is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pipeces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes. • The transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
