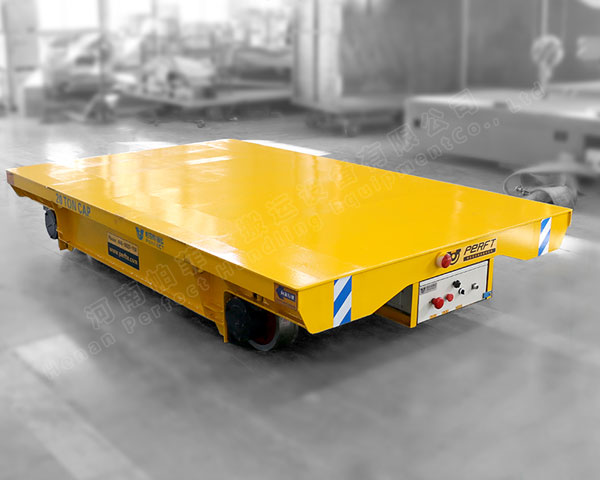

Conductor Rail Propelled Transfer Cart Used for Heavy Industry
Brief introduction •Conductor rail propelled transfer cart is also called material transfer car;
•It is a heavy duty material handling equipment usually used for manufacturing and maintenance applications.
•This type rail propelled transfer cart is composed of cart frame, drive block, electrical apparatus, shafts, coupling and safety features.
Characteristics•It is a heavy duty material handling equipment usually used for manufacturing and maintenance applications.
•This type rail propelled transfer cart is composed of cart frame, drive block, electrical apparatus, shafts, coupling and safety features.
♦Some electrical components brand can be chosen base to your requirement.
♦Equipped with overload device and limited switch.
♦Equipped with overload device and limited switch.
♦Equipped with power lose protection device, emergency stop device.
♦Can be customized according to clints’ requirements.
♦Widely using temperature arrange, can from -20℃ to +40℃.
Advantages
♦The load capacity can be from 1t to 300t, also can customized according to your require.
♦For the special structure of easy operating, it can be used in variety occasions.
♦It can improve the working frequency in the warehouse, load or unload occasion.
♦It is convent and easy to operate, has no special requirement of the operator.
■ Technical Data
Conductor Rail Propelled Transfer Cart Used for Heavy Industry
|
BDGZ SERIES TRANSFER CART TECHNIAL PARAMETER TABLE |
|||||
|
Model |
BDGZ-2t |
BDGZ-16t |
BDGZ-30t |
BDGZ-50t |
|
|
Rated Load(t) |
2 |
16 |
30 |
50 |
|
|
Table Size (mm) |
Length(L) |
2000 |
4000 |
4500 |
5500 |
|
Width(W) |
1500 |
2000 |
2200 |
2500 |
|
|
Height(H) |
450 |
500 |
600 |
650 |
|
|
Wheel Base(mm) |
1200 |
2800 |
3200 |
4200 |
|
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
1435 |
|
|
Wheel Diameter(mm) |
270 |
350 |
400 |
500 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
|
|
Ground Clearance(mm) |
50 |
50 |
50 |
50 |
|
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
|
|
Motor Power(kw) |
1 |
2 |
3.5 |
5 |
|
|
Transformer Power(KVA) |
3 |
6.8 |
10 |
20 |
|
|
Transformer Quantity |
1 |
1 |
1 |
1 |
|
|
Running Distance(m) |
70 |
70 |
70 |
50 |
|
|
Max Wheel Load(KN) |
14.4 |
64.5 |
174 |
343.8 |
|
|
Reference Weight(t) |
2.8 |
5.5 |
8 |
14.6 |
|
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
|
■ Application
Transfer Cart Application
•Assembly line, to transport machine parts to assemble.
•Repairing plant,
•Warehouse, transfer finished machines.
•Power station,
•Water station,
Usage site
