■ Overview

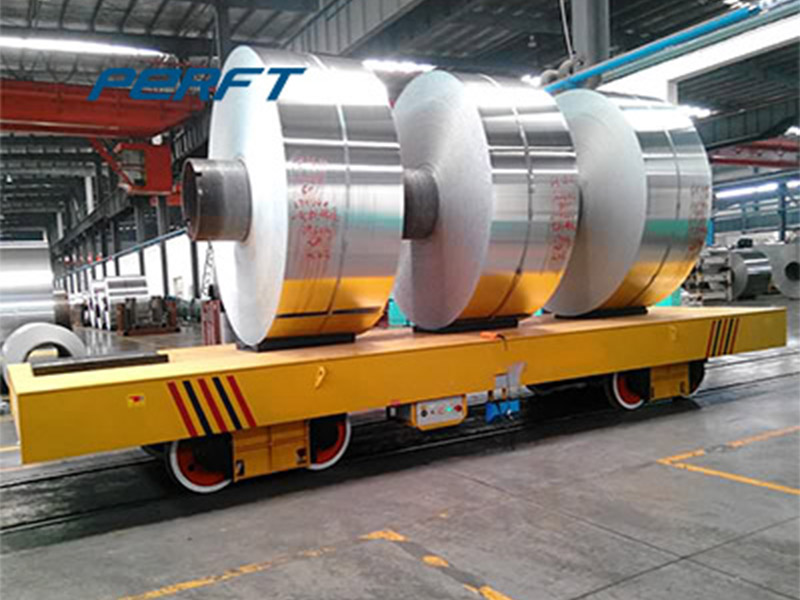

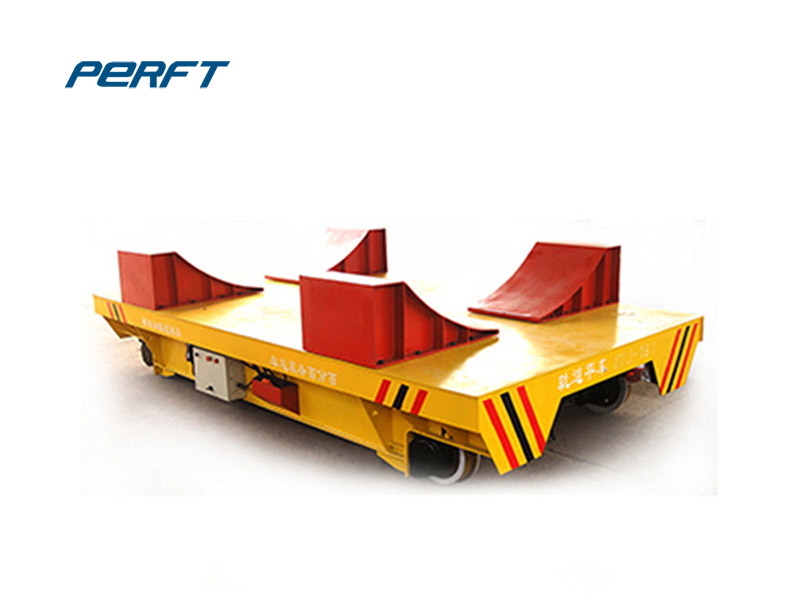

Motorized Battery Powered Rail Transfer Trolley For Steel Aluminium Copper Coil Transport
Our coil transfer trolley are specially designed for coil, pipe and other round material transportation.

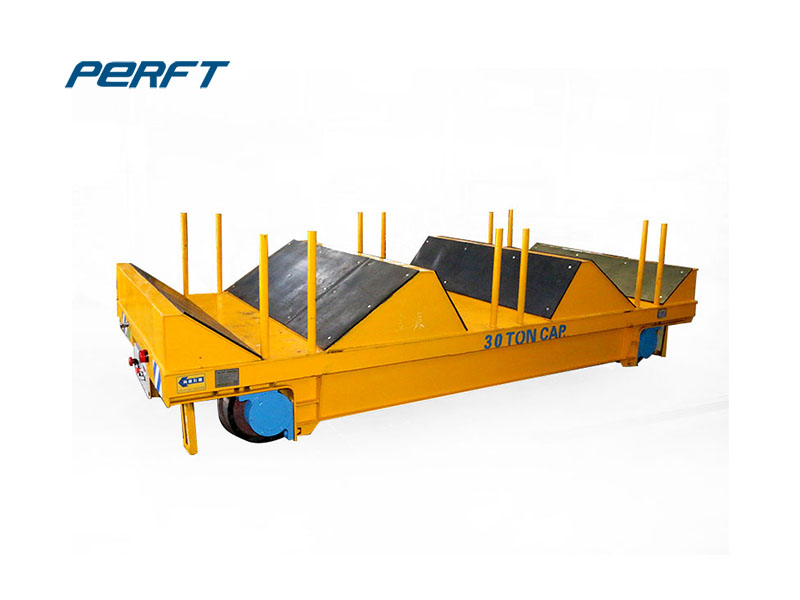

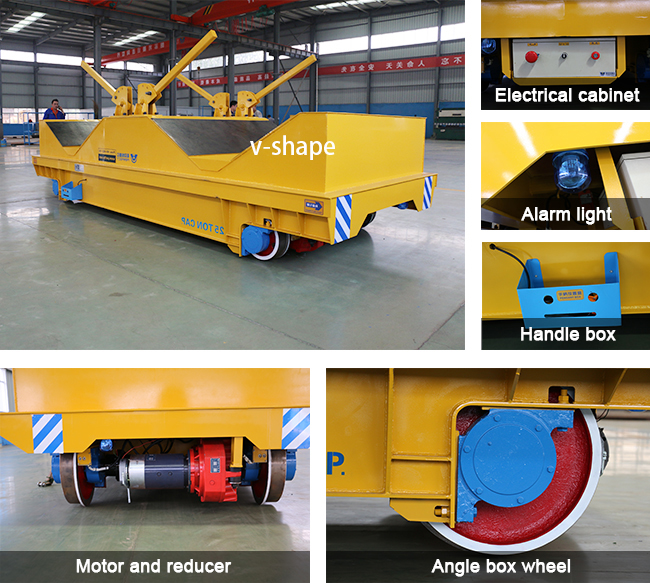

There are mounted V-shape and Roller on coil transfer cart to protect the coil stable, roller distance can be adjusted as per coil diameter, V-shape supporting and roller can also be removable from the cart for other cargo transport.
The coil transfer vehicle was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and products through manufacturing facilities.
when the goods are loaded, we can make sure the cart moves safely and the goods are in a very safe condition.
There are mounted V-shape and Roller on coil transfer cart to protect the coil stable, roller distance can be adjusted as per coil diameter, V-shape supporting and roller can also be removable from the cart for other cargo transport.
The coil transfer vehicle was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and products through manufacturing facilities.
when the goods are loaded, we can make sure the cart moves safely and the goods are in a very safe condition.
■ Technical Data
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
■ Application
The Coil Transfer trolley is usually used at factory, warehouse, plant, workshop, shipbuilding, and construction for high efficient transportation.
