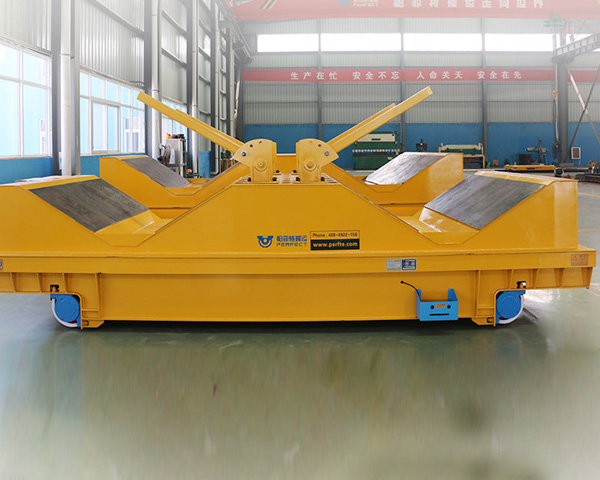

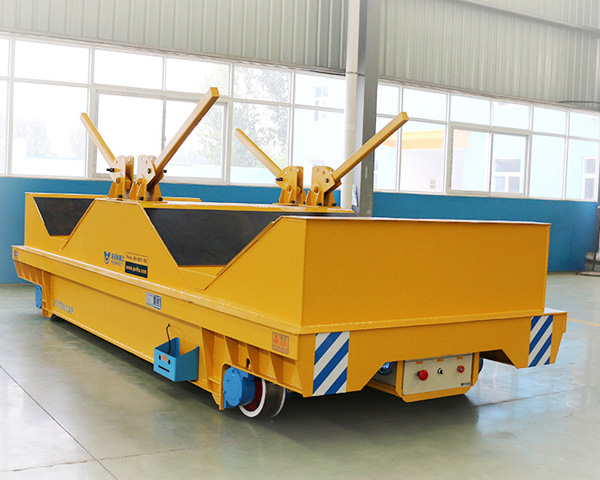

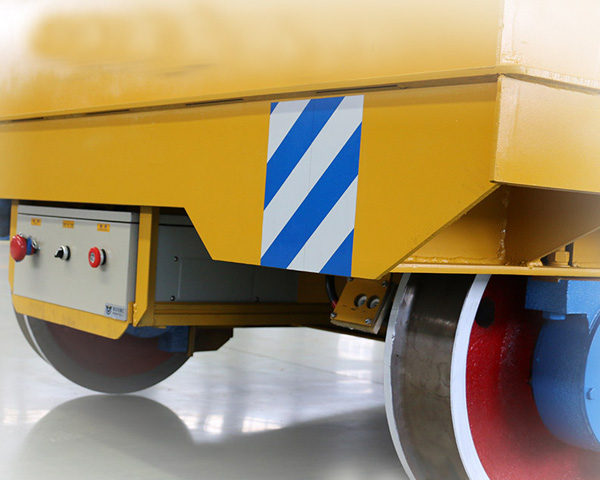

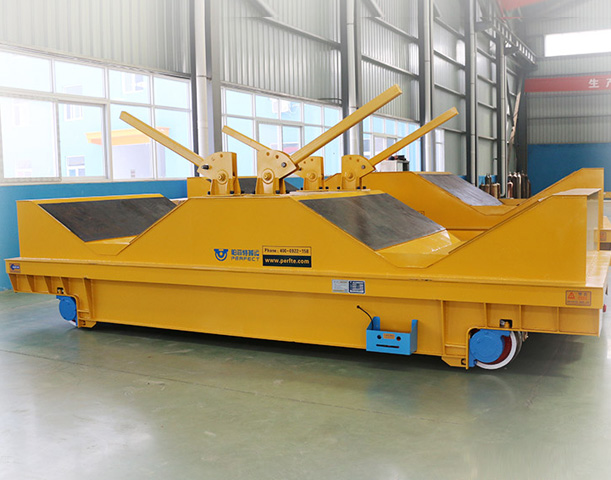

General Introduction for Coil Transfer Car

The coil transfer car is rail mounted handling equipment, in other words, it run along a fixed steel railways when working. This kind of rails coil transfer car can be powered by lead-acid battery, cable rails, conductor rails, busbar and diesel and all depend on your working condition. Typically, we can design  the coil transfer car up to 300 tons.
This kind of transfer car is versatile and can be used to various of working sites, not only normal environment, but alos harsh occasions: thermal, flammable, ferry etc. Actually, PERFECT also designed the steerable transfer car to suit the different needs, such as the workshop with narrow area.

Main Features of the Coil Transfer Car

1. Not only can move on the straight railways, but also can run along the "S" shaped and "C" formed railways;
2. Optional propulsion to suit different workshops;
3. Large load capacity 1-300 tons to satisfy different industry handling needs;
4. Customized table size make the transfer car to transfer various size cargoes;
5. Low operation voltage with high safety performance;



BDGZ SERIES COIL TRANSFER CAR TECHNIAL PARAMETER TABLE
Model		BDGZ-2t	BDGZ-16t	BDGZ-30t	BDGZ-50t
Rated Load(t)		2	16	30	50
Table Size (mm)	Length(L)	2000	4000	4500	5500
	Width(W)	1500	2000	2200	2500
	Height(H)	450	500	600	650
Wheel Base(mm)		1200	2800	3200	4200
Rail Inner Gauge(mm)		1200	1435	1435	1435
Wheel Diameter(mm)		270	350	400	500
Wheel Quantity		4	4	4	4
Ground Clearance(mm)		50	50	50	50
Running Speed(min)		0-25	0-20	0-20	0-20
Motor Power(kw)		1	2	3.5	5
Transformer Power(KVA)		3	6.8	10	20
Transformer Quantity		1	1	1	1
Running Distance(m)		70	70	70	50
Max Wheel Load(KN)		14.4	64.5	174	343.8
Reference Weight(t)		2.8	5.5	8	14.6
Recommended Rail Model		P15	P24	P43	QU100

Applications of Coil Transfer Car

The coil transfer car is well designed to solve the industrial handling problems, they are typically used to serve these  working sites:
Ship assembly and maintenace:  Transport ship's propellers and many other parts;
Logistics and warehouse: To transfer or handling any type materials and finished productions for storage or shipment;
Port and other offshore engineering: Our transfer cars are treated with two layers of antirust paint and anticorrosive paint, they are uaually use to transfer containers, oil well pipe and many other stuffs.
In-plant transporter: Oue coil transfer cars are so popular in workshop for material and cargoes transfer for the plenty of advatages;
Many other working conditions you can image...
