■ Overview

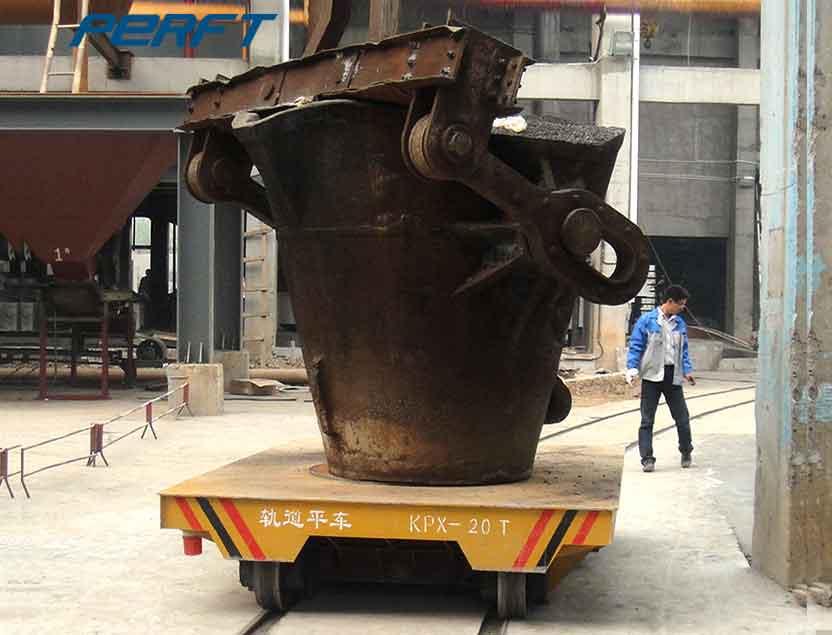

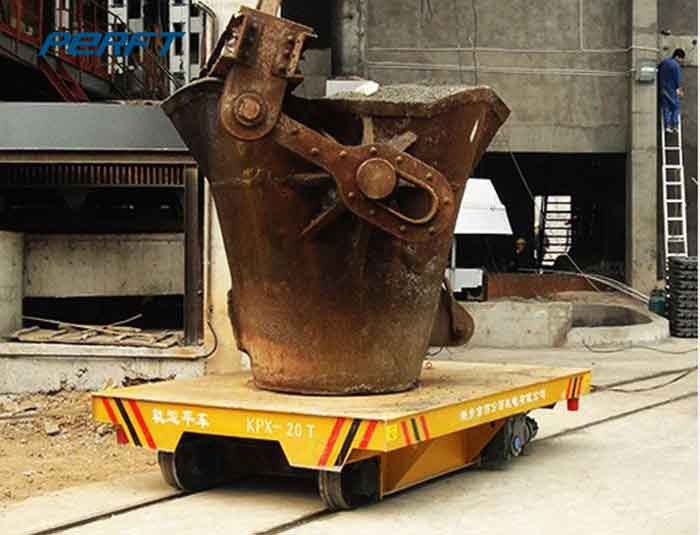

High temperature explosion-proof aluminum transfer ladle car

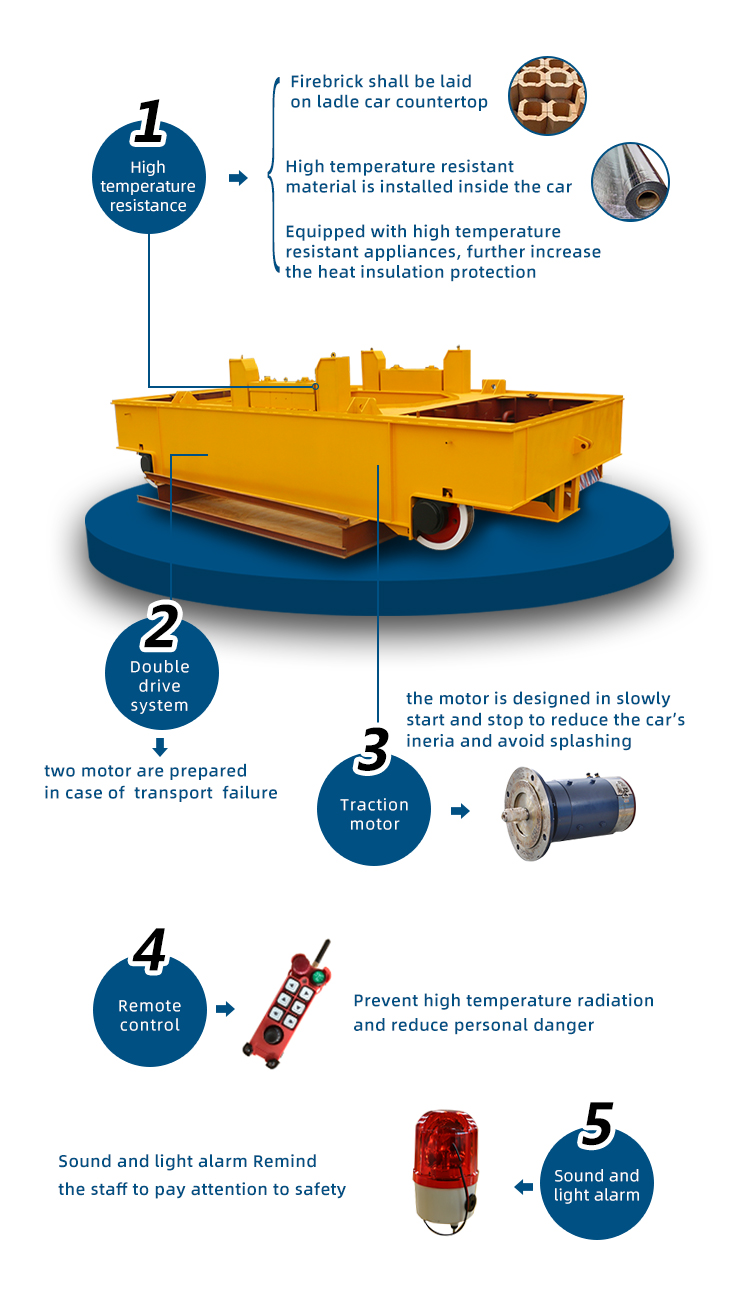

The High temperature explosion-proof aluminum transfer ladle car is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc. with the functions of steady traveling, stepless speed regulation.Generally the outer surface temperature of the High temperature explosion-proof aluminum transfer ladle car around 200-300 degree , due to the high temperature the ladle transfer cart should be designed with Insulation explosion proof process, especially to the battery, motor, reducer and electric appliance.
It can avoid the cart from damaging and shortening life. During the cart working, it must be steady travel, steady start and slowly stop.
In order to avoid the cart broken during working, there equipped two sets driving system, if the main driving system is broken, the spare driving system can be start at the same time.
.jpg)
■ Technical Data
|
Model |
BJT-2t |
BJT-20t |
BJT-50t |
BJT-100t |
BJT-150t |
|
|
Rated Load(t) |
2 |
20 |
50 |
100 |
150 |
|
|
Table Size(mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
|
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
|
Heigth(H) |
500 |
600 |
700 |
1000 |
1200 |
|
|
Wheel Base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
2000 |
2000 |
|
|
Wheel Diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
0-18 |
|
|
Motor Power(kw) |
0.8 |
2.5 |
5.5 |
11 |
15 |
|
|
Running Distance(m) |
25 |
30 |
50 |
50 |
50 |
|
|
Max Wheel Load(KN) |
14.4 |
77.7 |
174 |
343.8 |
265.2 |
|
|
Reference Weight(t) |
2.5 |
5.6 |
7.8 |
14.1 |
26.2 |
|
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
|
■ Application

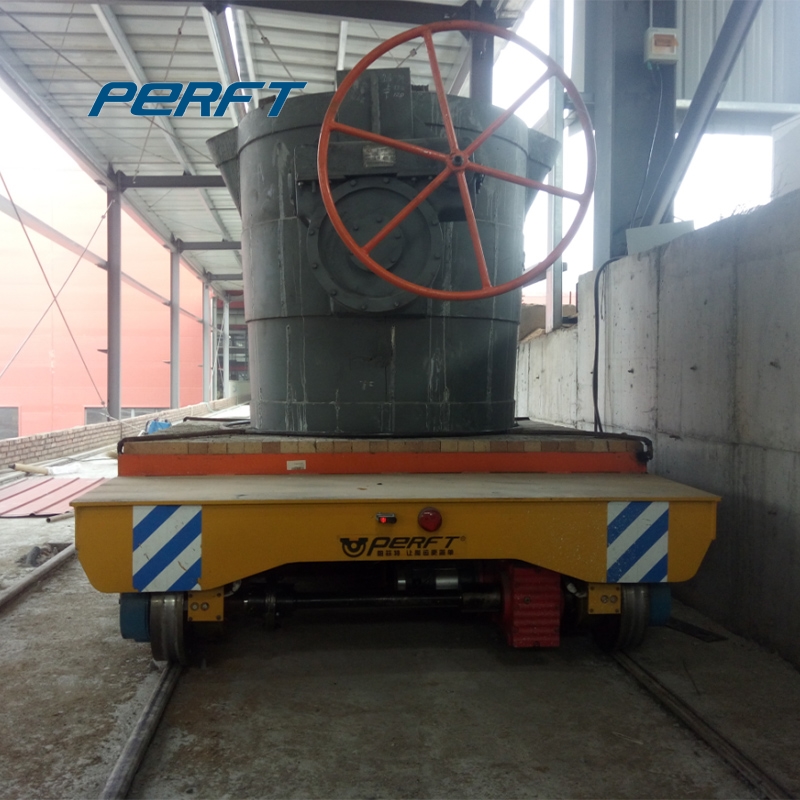

High temperature explosion-proof aluminum transfer ladle car running on rail powered by battery cable etc for Ladle aluminum water transfer.
