■ Overview

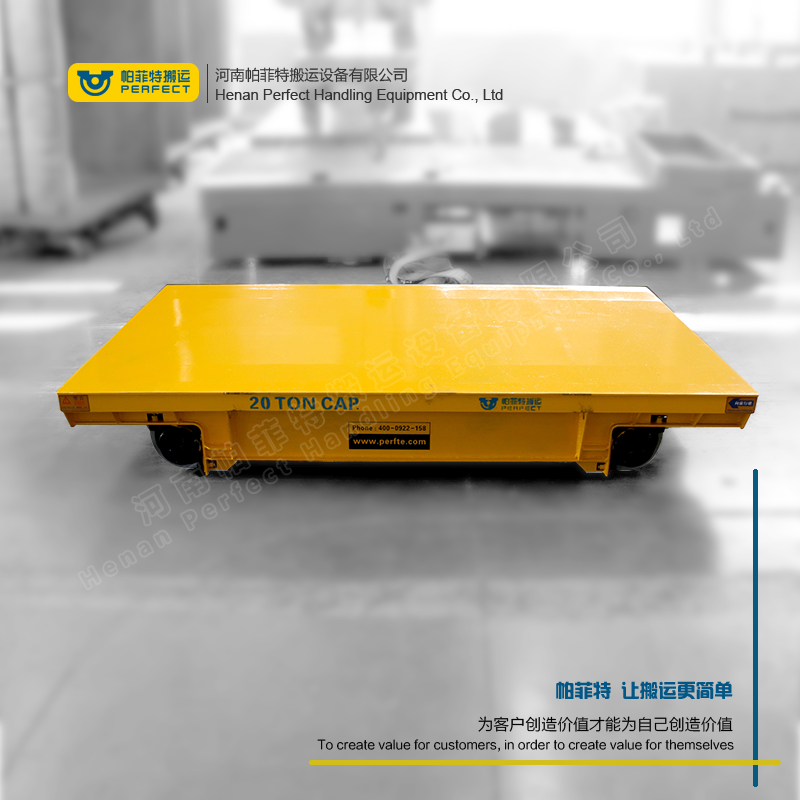

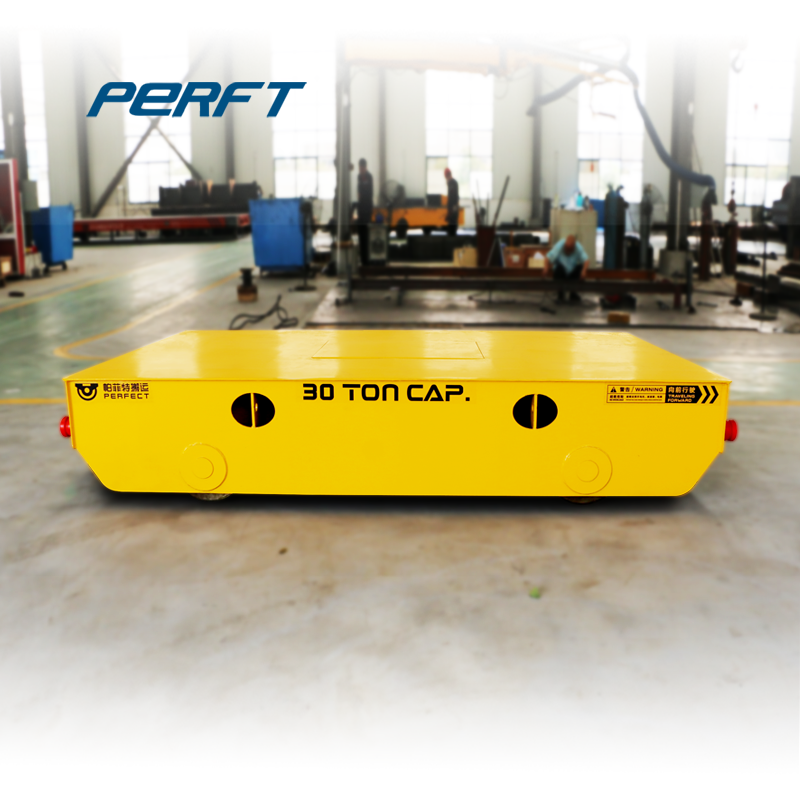

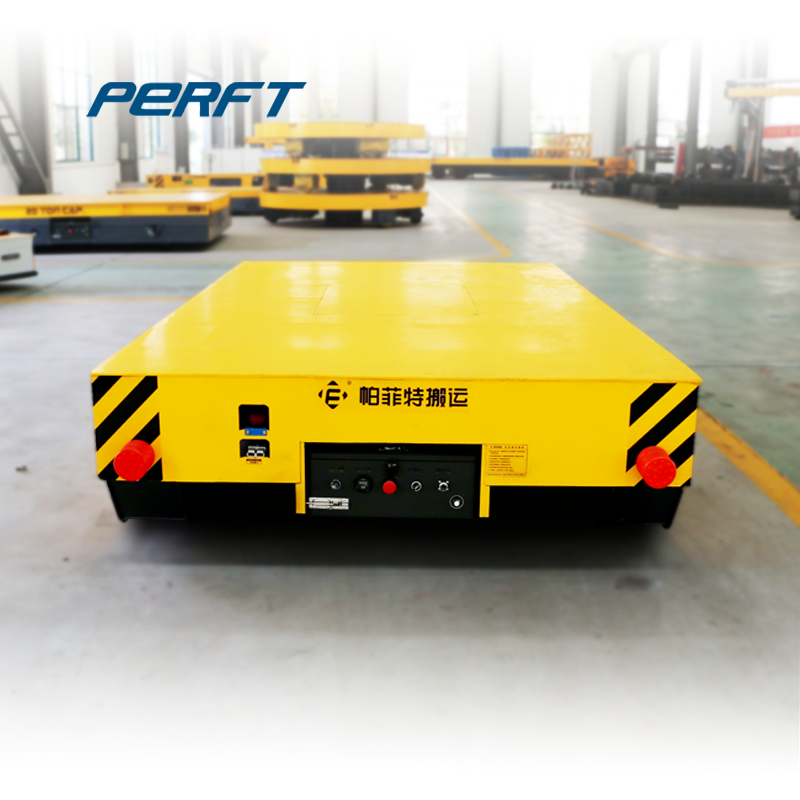

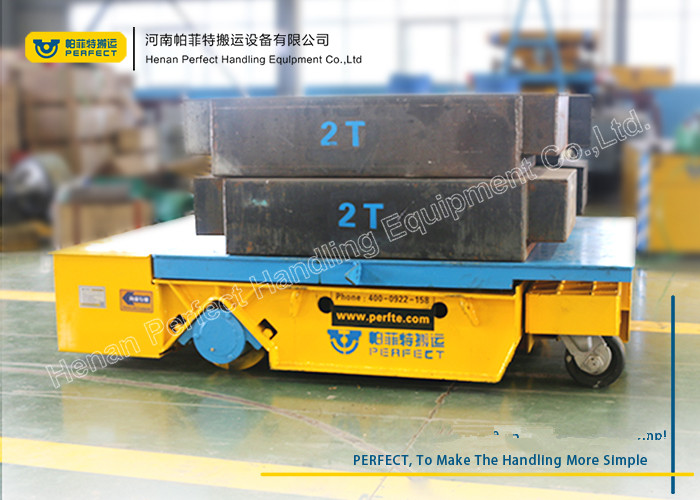

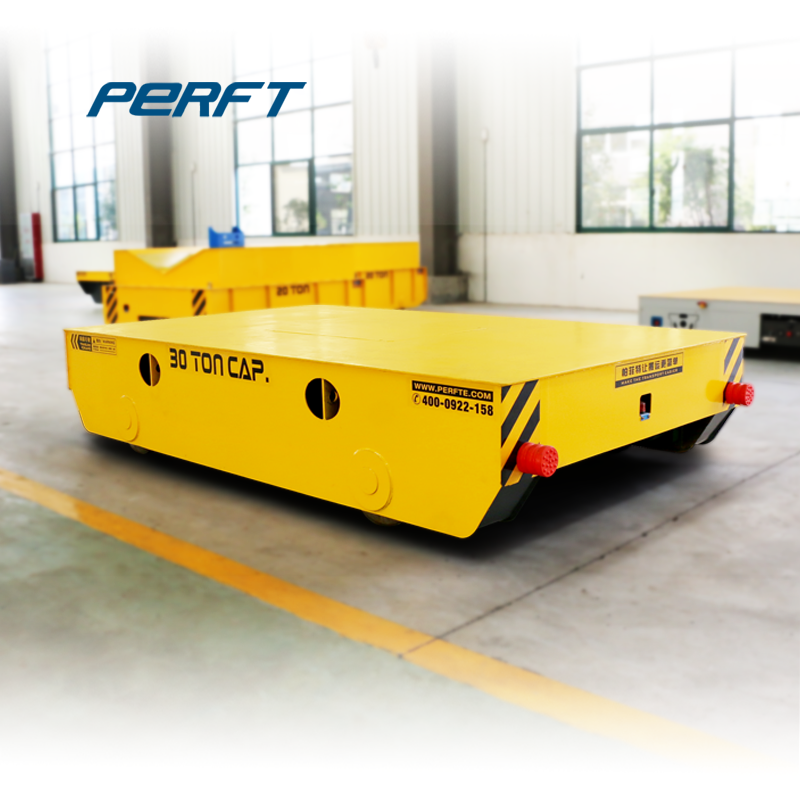

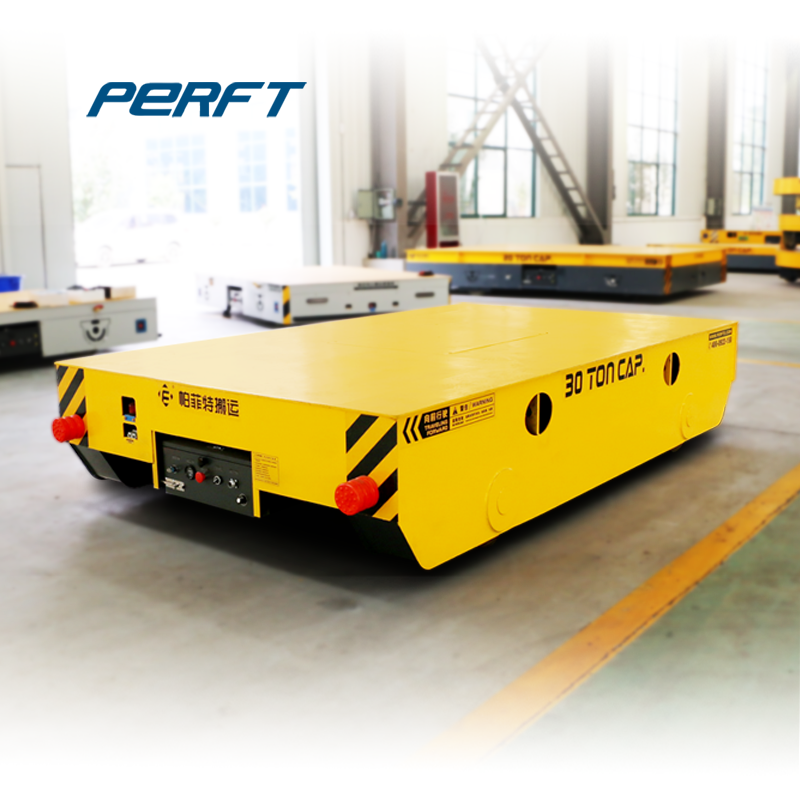

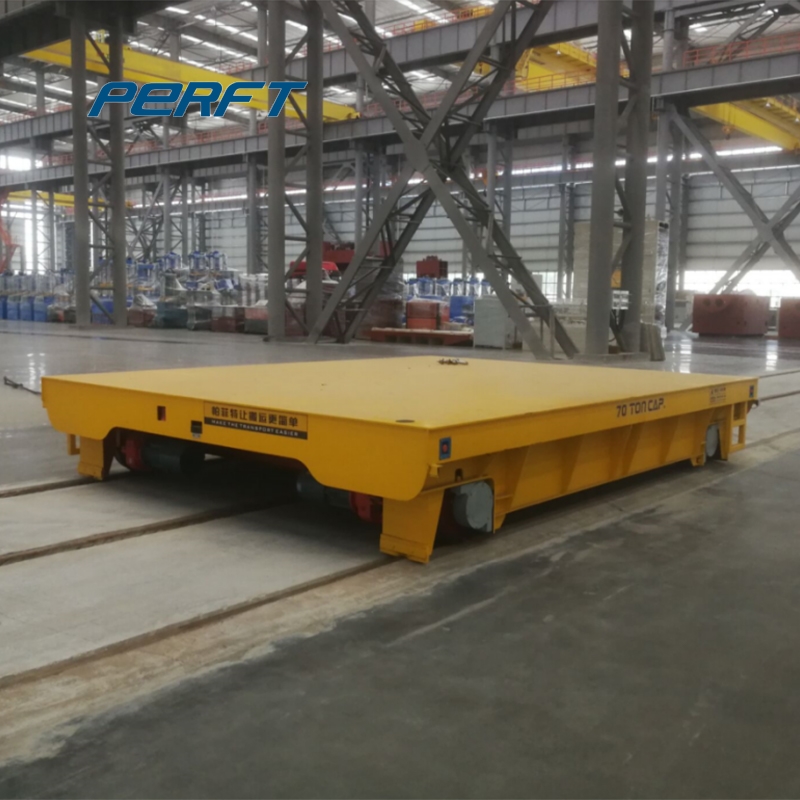

Battery Powered Steel pipe transfer trolley on rail tracks
1.Load-bearing transportation is the most basic and important function of electric flat carts. This series of flat carts have the function of running on curved tracks such as S-shaped and C-shaped tracks.
2.Battery powered rail cart can be equipped with a hydraulic lifting system to realize lifting and other functions.
3.Battery powered rail cart can be turned over and unloaded by hydraulic devices.
4.Safety devices can be installed on the battery powered rail cart, such as proximity switch, stop when meeting people, alarm system, buffer, etc. to realize corresponding safety functions.
5.According to the reasonable requirements of customers, to develop the corresponding customized electric rail cart to realize the required functions.
Note: For any other special needs, we can design the transfer trolley for you.
.jpg)
Principle
BXC series battery powered rail cart is installed inside the flat cart. The power supply provides power to DC traction motors through an electrical control system. Start, stop, advance, retreat, speed control, etc. of the flat cart.Features of battery powered trandfer trolley
carrying capacity, no fear of dirt and smashing, easy maintenance, long service life, etc. Because of its convenience, economy, practicality, easy cleaning and many other advantages, it has become the preferred transport cart for moving heavy objects regular when the journey is fixed.1.Load-bearing transportation is the most basic and important function of electric flat carts. This series of flat carts have the function of running on curved tracks such as S-shaped and C-shaped tracks.
2.Battery powered rail cart can be equipped with a hydraulic lifting system to realize lifting and other functions.
3.Battery powered rail cart can be turned over and unloaded by hydraulic devices.
4.Safety devices can be installed on the battery powered rail cart, such as proximity switch, stop when meeting people, alarm system, buffer, etc. to realize corresponding safety functions.
5.According to the reasonable requirements of customers, to develop the corresponding customized electric rail cart to realize the required functions.
Note: For any other special needs, we can design the transfer trolley for you.
■ Technical Data
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-63t | KPX-100t | KPX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 63 | 100 | 150 | |
| Table Size(mm） | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5600 | 6500 | 10000 |
| Width( W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 700 | 900 | 1200 | |
| Wheel Diameter(mm） | Ф270 | Ф300 | Ф300 | Ф350 | Ф350 | Ф400 | Ф400 | Ф500 | Ф600 | Ф600 | Ф600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Running Seed(m/min） | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(Kw） | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 6.3 | 10 | 15 | |
| Battery Voltage(V） | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3 | 3.2 | 2.9 | |
| Reference Weight(t） | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 10.8 | 14.6 | 26.8 | |
■ Application
Application of the battery powered transfer trolley

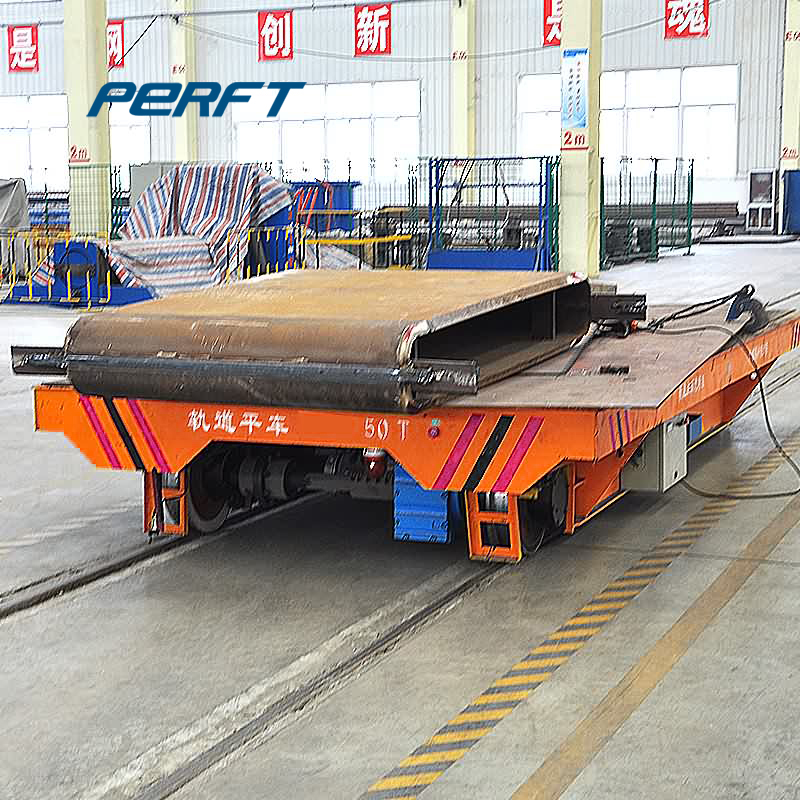

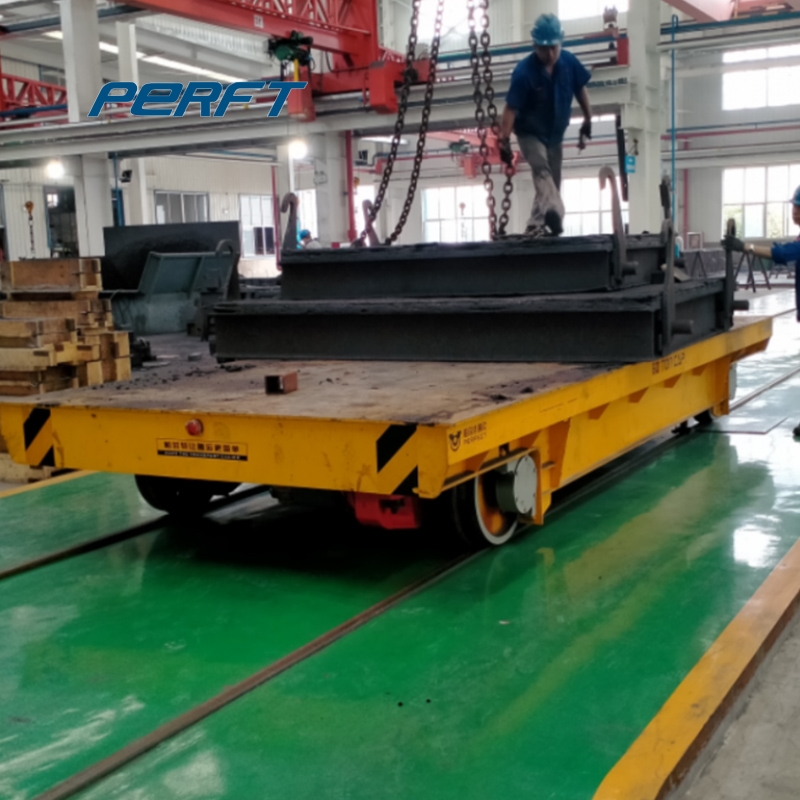

• The battery powered transfer car is widely used to transfer heavy cargoes of steel tube and pipes, coiled sheets and plates, steel bars, machine manufacturing pieces, metal forging and casting pipeces, steel coils, building structural materials, galvanized coils and aluminum coils, other metal and steel heavy cargoes. • The transfer trolley has a large load range from 1t to 300t. According to customer's special requirements, specific load ability is designed. And also, different table shape is designed according to different cargo shapes, for example coil car, ladle car, scissor lifting table cargo, etc.
