Hot sale electric material handling transfer vehicle

2018-05-21

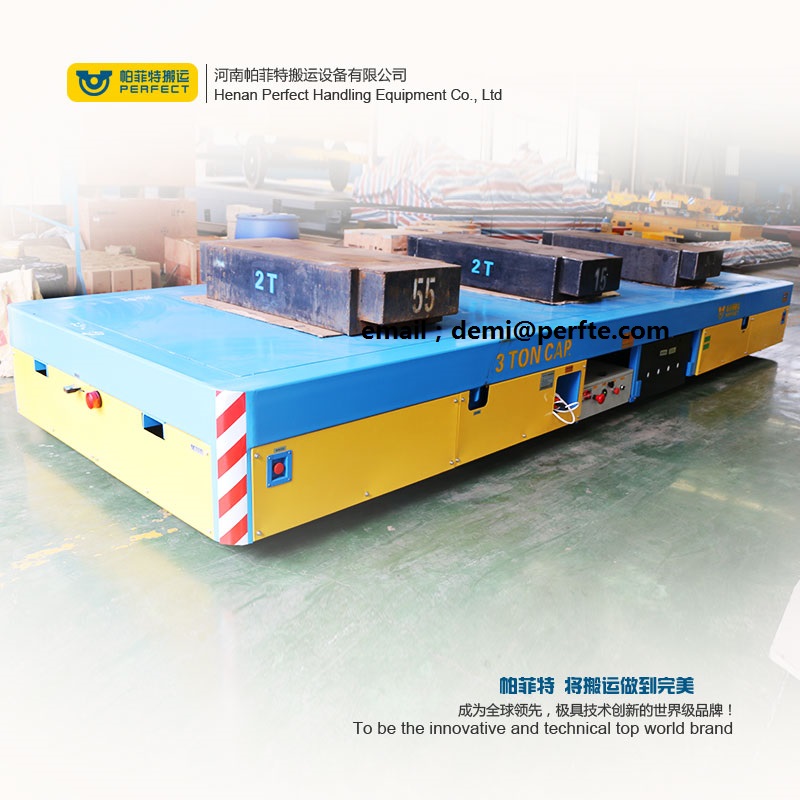

 Hot sale electric material handling transfer vehicle



This electric material handling transfer vehicle is usually used at ship yard, plant and factory, certain production line. The electric material handling transfer vehicle could get power from outside or from the battery. The electric material handler was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. The electric material handling transfer vehicle construction is based on our world renowned die electric material handlers and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our electric material handling transfer vehicle is available in a number of configurations specifically designed to suit the needs of our customers.

Technical Parameter of electric material handling
Model BWP-5t BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 20 30 40 50
Max. Wheel Load (t) 2.8 5.6 7.7 10 12
Ground Requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50
Table Size (mm) 3000 X 2000 4500 X 2200 5000 X 2200 5500 X 2300 6000 X 2300
Height (mm) 450 600 650 700 700
Wheel Base (mm) 1500 1700 1700 1800 1800
Axles Distance (mm) 2500 3900 4300 4800 5200
Turning Radius (mm) 2501 3901 4301 4801 5201
Turning Structure Mechanical
Motor Power (KW) 3.5 7 10 12 15
Wheel Diameter (mm) 300 (4) 400 (4) 400 (6) 500 (6) 500 (6)
Wheel Material ZG55+hydropurture
Running Speed (m/min) 0-15 0-12
Brake Principle Electric magnetic brake
Operation Method Raido Remote Control
Battery Maintainance Free of maintainance
Charger's Installation Installed on cart Split-type
Cart Color Customized
Charger's Function Automatically cut off the power when the battery is fully charged
Radar Control 3-0.3 m, Automatic stop for obstacles
Warning Equipment Horn and Flash Light
Other Functions Turning light, night light and power display


electric material handling transfer vehicle NOTES:

  • Flat deck or fixtures for transporting special payload;
  • Custom deck configurations may include lift, tilt, or rotate function;
  • Payload from 1 ton to 300 tons;
  • Fixed speed or variable speed capabilities;
  • On board charging is available if battery drives;
  • With forward or backing driving;
  • Options for automatic control;
  • Available safety equipment includes horn, lights, emergency stop, bumpers and detector.
