■ Overview
Overall Introduction About Turning Rail Trolley
We are one professional transfer carraige manufacturer in China, our product have exported to many countries and regions such as Australia, USA, Mexico, Germany, Malaysia, Singapore, India, South Africa and Middle East etc. Note:The transfer carriage is mainly used to transport material from one location to another. Capacity Range: 1-300ton, it can be customized.
Main products
| Working Principle | the transfer cart is powered by battery, which is installed underneath the cart, it supplies DC 24V/36V/48V to the electrical control system. And accordingly start, stop, forward and reverse etc. |

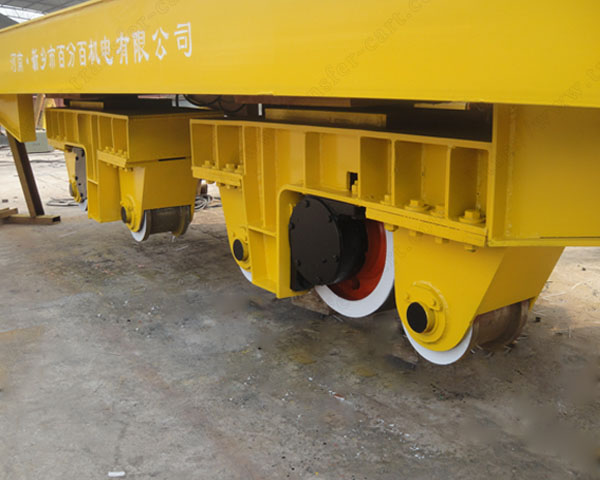

| Main Parts | cart frame, steel wheel, gearmotor, reducer, braking system, safety equipment, storage battery, charger, shaft, etc. |
| Operation Way | both remote control and push button pendant are available |
| Safety Equipment | Sound and light alarm; limit switch; buffer; dead man control; E-stop button; warning strip |
| Advantages | traveling on curved track; Flat decking; safe and flexible; unlimited running distance; heavy load capacity; adjustable speed |
■ Technical Data
| Model | KPX-5t | KPX-12t | KPX-30t | KPX-80t | KPX-150t | |
| Rated Load(t) | 5 | 12 | 30 | 80 | 150 | |
| Table Size(mm) | Length( L) | 3500 | 4000 | 4500 | 5000 | 6000 |
| Width( W) | 2000 | 2000 | 2200 | 2500 | 2600 | |
| Heigth( H) | 500 | 550 | 600 | 750 | 800 | |
| Wheel Diameter(mm) | Ф300 | Ф350 | Ф400 | Ф450 | Ф600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Running Speed(m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Battery Voltage(V) | 36 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 5.4 | 4.3 | 3.3 | 3.6 | 2.9 | |
| Max Wheel Load(KN) | 25.8 | 64.5 | 174 | 278.4 | 265.2 | |
| Reference Weight(t) | 3.6 | 5.2 | 7.2 | 8 | 12.8 | |
| Recommended Rail Model | P18 | P24 | P38 | P43 | QU100 | |
■ Application
The Main Application of Rail Mounted Trolley

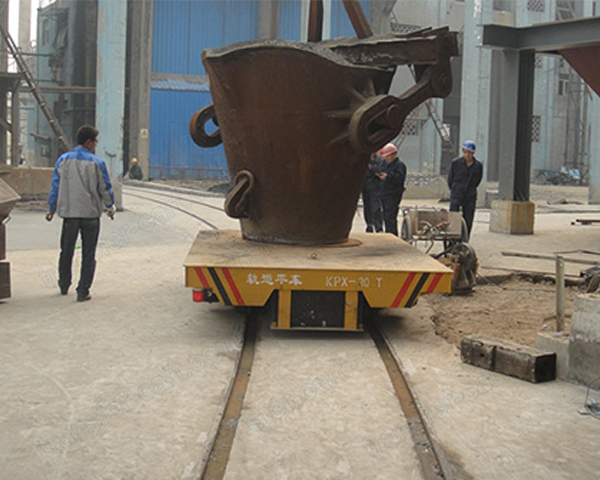

1. The transfer cart is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc from one location to another; 2. Paper roll plant: transfer paper coil;
3. Painting shops: transfer workpiece into the painting room;
4. Sand blasting room;
5. Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, transformer plant, etc.
