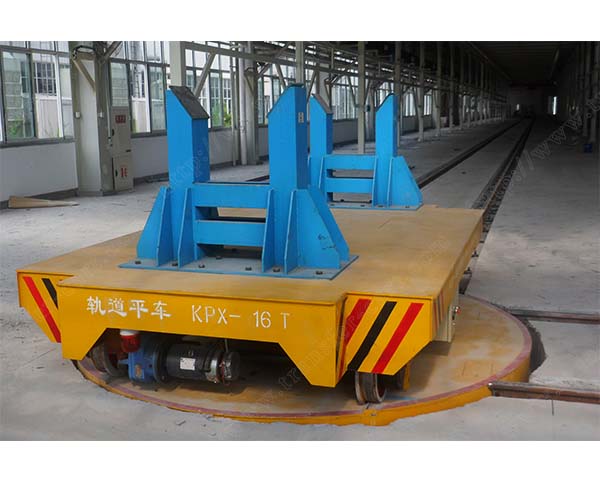

Battery operated transfer car bogie system on turntable transfer cart

►About us
PERFECT is committed to produce the best and most efficient factory material transfer subject. Our vision is to build the world No.1 material transfer cart Brand. Any order with any special requests, even if you still donnot know whether your factory can use our rail trailer we will be more than happy to accommodate and will help you design the whole factory material transfer project together.

►Features of manufacturing industry rail bogie
♦ Our products have been certified by CE, SGS; and our company has passed ISO9001 certification.
♦ PERFECT's range factory material transfer carts are all by no less than 120% Load Bearing Safety test before shipping.
♦ PERFECT’s rail cart parts we procure are all trustworthy and legitimate names in the industry.
♦ PERFECT’s rail trailers are design and built meeting JB/T6127-92 and Crane Girder Standards ensure durability and long lifetime.
♦ PERFECT’s track handling trolley’s manufacturing capacity range from 1 ton to 300 tons.
♦ More than 1000 products and 587 custom design molds accumulation,committed to meet your one-stop-shop of factory material transfer carts.
♦ We offer: rail construction project design and construction CAD drawing, whole series of standard CAD rail cart drawing and operation manual.

►Application of bay to bay transfer rail bogie
The transfer cart can be used in the ferry condition and flammable, explosive environment,high-temperature condition and so on.
The transfer car is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc from one location to another; Paper roll plant; transfer paper coil; Painting shops; transfer workpiece into the painting room; Sand blasting room. Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.



Model		KPX-5t	KPX-16t	KPX-50t	KPX-80t	KPX-150t
Rated Load(t)		5	16	50	80	150
Table Size(mm)	Length( L)	3500	4000	5500	6000	10000
	Width( W)	2000	2000	2500	2600	3000
	Heigth( H)	500	550	650	800	1200
Wheel Diameter(mm)		Ф300	Ф350	Ф500	Ф600	Ф600
Wheel Quantity		4	4	4	4	8
Running Speed(m/min)		0-25	0-20	0-20	0-20	0-18
Battery Voltage(V)		36	48	48	72	72
Running Time When Full Load		5.4	4.3	3.3	3.6	2.9
Running Distance for One Charge(Km)		8.1	5.1	4	4.3	3.2
Reference Weight(t)		3.6	5.5	8	12.8	26.8

---

---



♦ Capacity: ranging from 1 ton to 300 ton.
♦ Dimensions: it can be designed according to your specific conditions.
♦ Usage: it is applied to transfer heavy cargoes, molds, equipment, machinery etc, from one bay to another.

►Product Features
 Carriage runs cross rails or ring rails; Accurate joint and safe operation; Full automatic electrical control; Suitable for production lines; 90/180/360 degree turn.

►Product Options
♦ Battery power;
♦ Safety equipment;
♦ Wireless remote control;
♦ Imported electrical parts;
♦ Rail guided or cement floor.

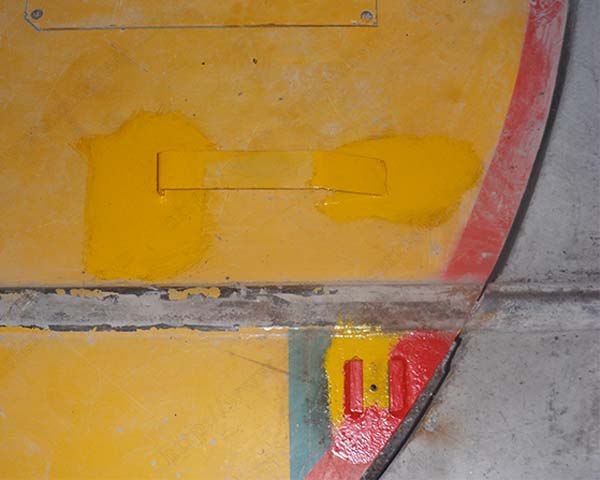

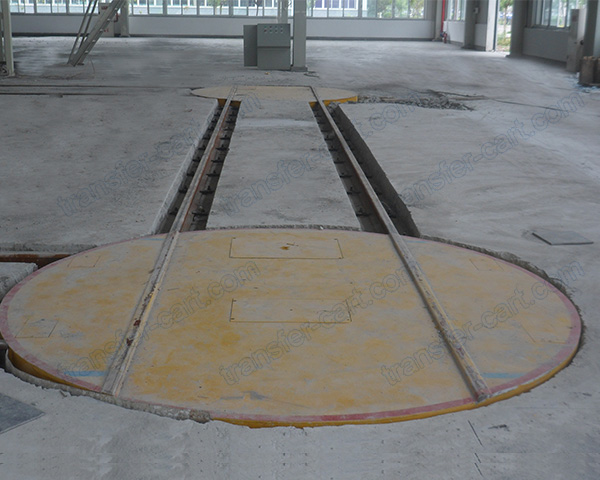

Turntable is used for turning track, so that they can be moved back in the direction from which they came. This is especially true in areas of economic considerations and/or lack of sufficient space. Incorporated with inverter and sensors, it can realize accurate rails butt joint for excellent turning performance with 90/180/360 swerve angle.
