Industrial trailer battery powered electric transport flat transfer car for transfer aluminum coils

  • Type : coil handling battery cart
  • Color : Yellow(customized)
  • Application : Transfer Materials
  • Capacity : 1-300T
  • Certificates : CE ISO SGS

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • battery powered electric transport flat cart , transfer aluminum coils
  • battery powered electric transport flat cart , transfer aluminum coils
  • battery powered electric transport flat cart , transfer aluminum coils
  • battery powered electric transport flat cart , transfer aluminum coils
Main Products
On-rail Transfer trolleys
Custom Transfer trolleys
Trackless Transfer trolleys
Industrial Trailers
Rail Flaw Detection Vehicle

Need Help?

or Email us:

sale@perfte.com

Follow Us

Facebook Linkedin
■ Overview

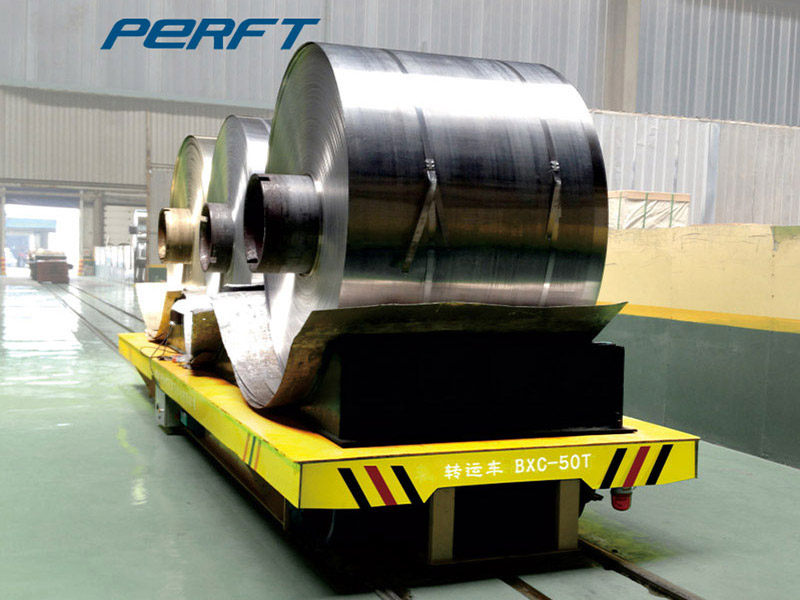

This industrial battery powered electric transport flat cart for transfer steel coil is usually used at ship yard, plant and factory, certain production line. The industrial battery powered electric transport flat cart for transfer steel coilcould get power from outside or from the battery. The industrial battery powered electric transport flat cart for transfer steel coil was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. coil handling battery cart construction is based on our world renowned die coil handling battery carts and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our coil handling battery cart is available in a number of configurations specifically designed to suit the needs of our customers.
industrial battery powered electric transport flat cart for transfer steel coil
■ Technical Data

Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for Once Charge(KM) 6.5 4.8 4 3.8 3.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100
■ Application
 1. Q: What is the size and load of this coil handling battery cart ?

A:The size and load of our this coil handling battery cart is customized design according to your requirement.

2. Q: How should I operate this coil handling battery cart ?

A: The coil handling battery cart is controlled by pendant & remote radio control. The controller could be push button or joy-sticker.

3. Q: Is there any braking system on this coil handling battery cart ?

A: Yes, there are electromagnetic brakes on the coil handling battery cart. When the coil handling battery cart is power off, the brake will work automatically. And there are emergency stop buttons on the remoter and the coil handling battery cart, you can push it for emergency stop.

4. Q:What is the warranty period? What kind of service do you offer in the warranty period?

A: The warranty period for our product is 12 months from the time we delivery, during the warranty period, we will send spare parts to you on our own cost if damaged because of bad quality, and we will guide you how to replace it. If necessary, our engineer is available to your factory for maintenance.

5. Q: How do you transport the coil handling battery cart and what is the package ?

A: For the big part, we will pack it with tarpaulin and wood pallet on the bottom of the coil handling battery cart to prevent it from moving. For the small part, we will pack it in wood case.
