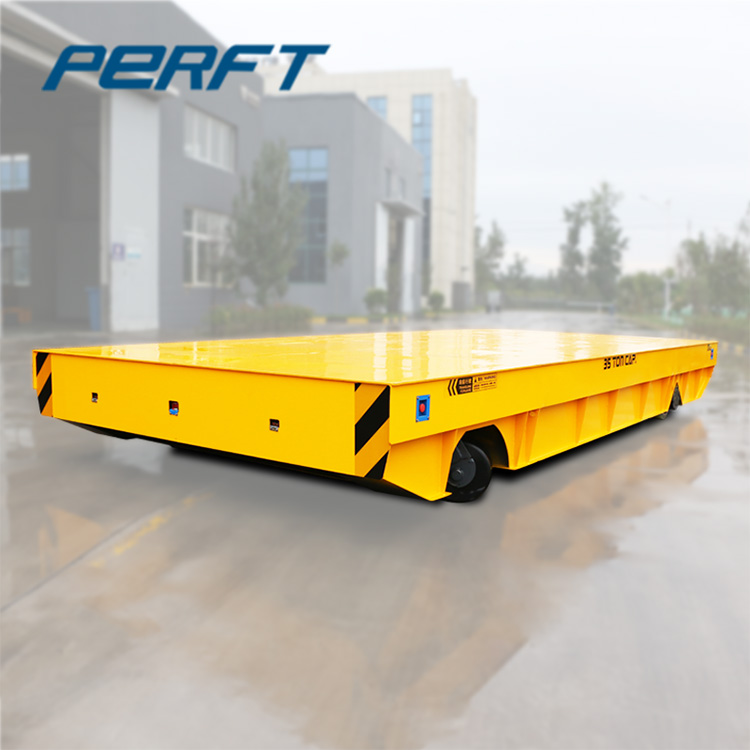

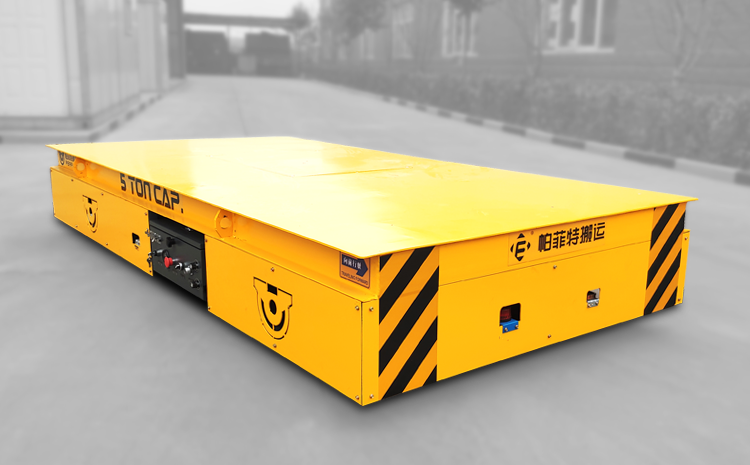

Battery Powered Cross Rail Transfer Cart
Battery powered rail cart is powered by battery, the battery is installed inside the flat cart. The power supply provides power to DC traction motors through an electrical control system to control start, stop, advance, retreat, speed control, etc. of the flat cart.
1. A combination of battery and generator
2. Running on rail by motor driven
3. Vehicle remote sensing control forward and backward
4. Available heavy duty material Handling
5. Can meet the no-power working environment
6. Extra long distance transportation
7. High frequency use
|
Model |
BXC-2t |
BXC-20t |
BXC-50t |
BXC-100t |
BXC-150t |
|
|
Rated Load(t) |
2 |
20 |
50 |
100 |
150 |
|
|
Table Size(mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
|
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
|
Heigth(H) |
450 |
550 |
650 |
850 |
1200 |
|
|
Wheel Base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
2000 |
2000 |
|
|
Wheel Diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
0-18 |
|
|
Motor Power(kw) |
0.8 |
2.5 |
5.5 |
11 |
15 |
|
|
Transformer Power(KVA) |
3 |
6.8 |
10 |
30 |
30 |
|
|
Transformer Quanity |
1 |
1 |
1 |
1 |
1 |
|
|
Running Distance(m) |
70 |
70 |
50 |
50 |
50 |
|
|
Max Wheel Load(KN) |
14.4 |
77.7 |
174 |
343.8 |
265.2 |
|
|
Reference Weight(t) |
2.8 |
5.9 |
8 |
14.6 |
26.8 |
|
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
|
